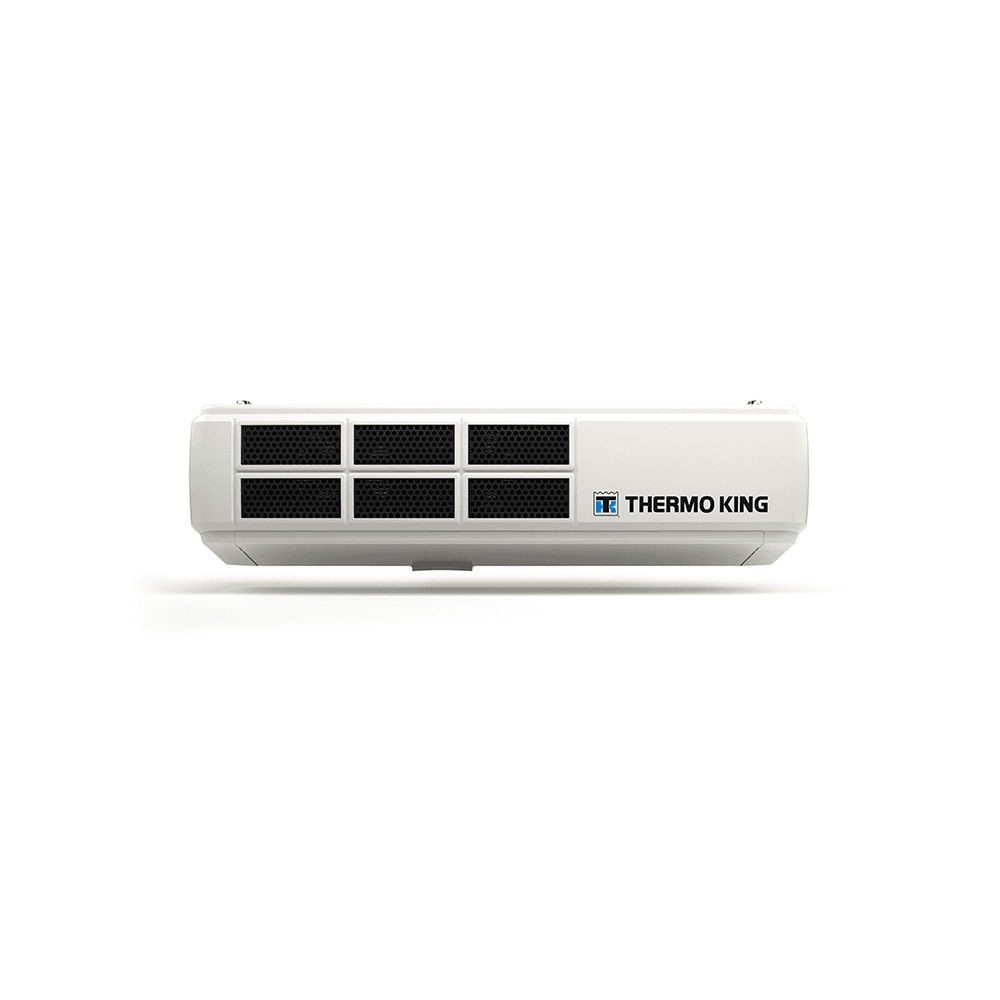

Truck Unit

V-800

The most powerful vehicle-powered range

Direct drive

New swash plate compressor — easy to install
Best-in-class performance in both cooling and heating modes
User-friendly Direct Smart Reefer III controller
Environmentally friendly — no emissions from the unit
Low noise
Available in 1- and 2-temperature (Spectrum) configurations

The V-800 is a direct-drive unit powered by the vehicle's own engine. A dedicated Thermo King QP21 refrigeration compressor is belt-mounted to the engine. The V-800 is front-wall mounted and available in 1- and 2-temperature configurations.

Specifications

Refrigeration Capacity

Capacity on engine power, 0°C: 5 175 W
Capacity on electrical stand-by, 0°C: 4 920 W
Test conditions: ATP, +30 °C

Airflow and defrost

Airflow: 2 680 m³/h
Defrost: Automatic hot-gas defrost
Independent from unit engine speed: ✓

Compressor

Model: QP21 swash plate
Displacement: 215 cm³
Number of cylinders: 10

Weight

Condenser w/o electric stand-by: 100 kg
Condenser with electric stand-by: 160 kg
Evaporator: 35 kg
Swash plate compressor: 8,5 kg

Condenser Dimensions

Height: 458,7 mm
Width: 1 592 mm
Depth: 523 mm

Electrical Stand-by Motor

Voltage / Phase / Frequency: 400/3/50 · 400/3/60 · 230/3/50 · 230/3/60
Rating: 8,2 kW

Controller

Controller: Direct Smart Reefer III (DSR III)

Refrigerant

Refrigerant: R-134a
Charge (10 cyl): 4,55 kg
Charge (20 cyl): 4,85 kg

Application range

Box volume: 44 m³
Application: Fresh, frozen and deep-frozen transport
Available evaporators: ES150, ES400, ES600, ES800

The technical data and dimensions shown are indicative and not binding. Verify the final dimensions and specifications with our sales team before ordering. Subject to technical changes, errors and translation errors.

More about the V-Series

0 g

Unit CO₂ emissions

−54 %

Fuel cost vs. diesel unit

−33 %

Maintenance cost vs. diesel

+40 %

Pulldown speed (Zone Priority)

Direct-drive technology — powered by the vehicle

The V-Series delivers flexible, reliable temperature control for vans and trucks. On the road the compressor is powered by the vehicle's engine, and when stationary the electric stand-by takes over — one unit, two power sources, no on-board diesel engine. The result is low weight, a compact profile and best-in-class operating costs.

Swash plate compressor

A new swash plate compressor is engineered for ease of installation and combined with the DSR III controller it delivers best-in-class performance in both cooling and heating modes. A wide range of drive kits adapts the unit smoothly to different vehicle sizes.

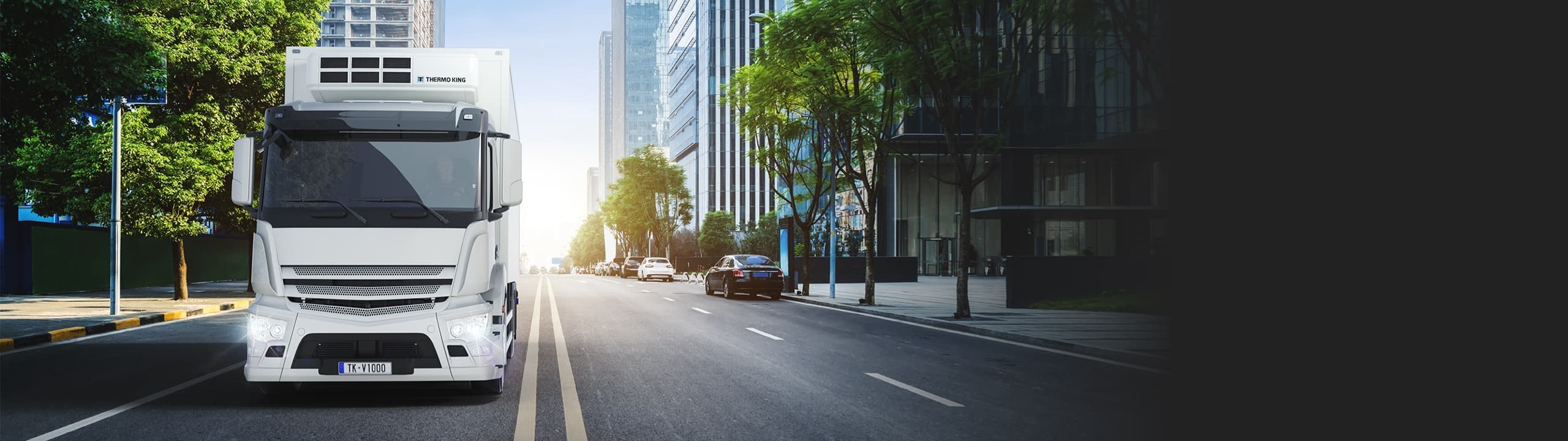

Zone Priority — intelligent zone control

Zone Priority prioritises cooling or heating in the chosen compartment, accelerating pulldown by up to 40 %. The driver can select automatic, manual or disabled — the same unit serves multi-temperature distribution without compromise.

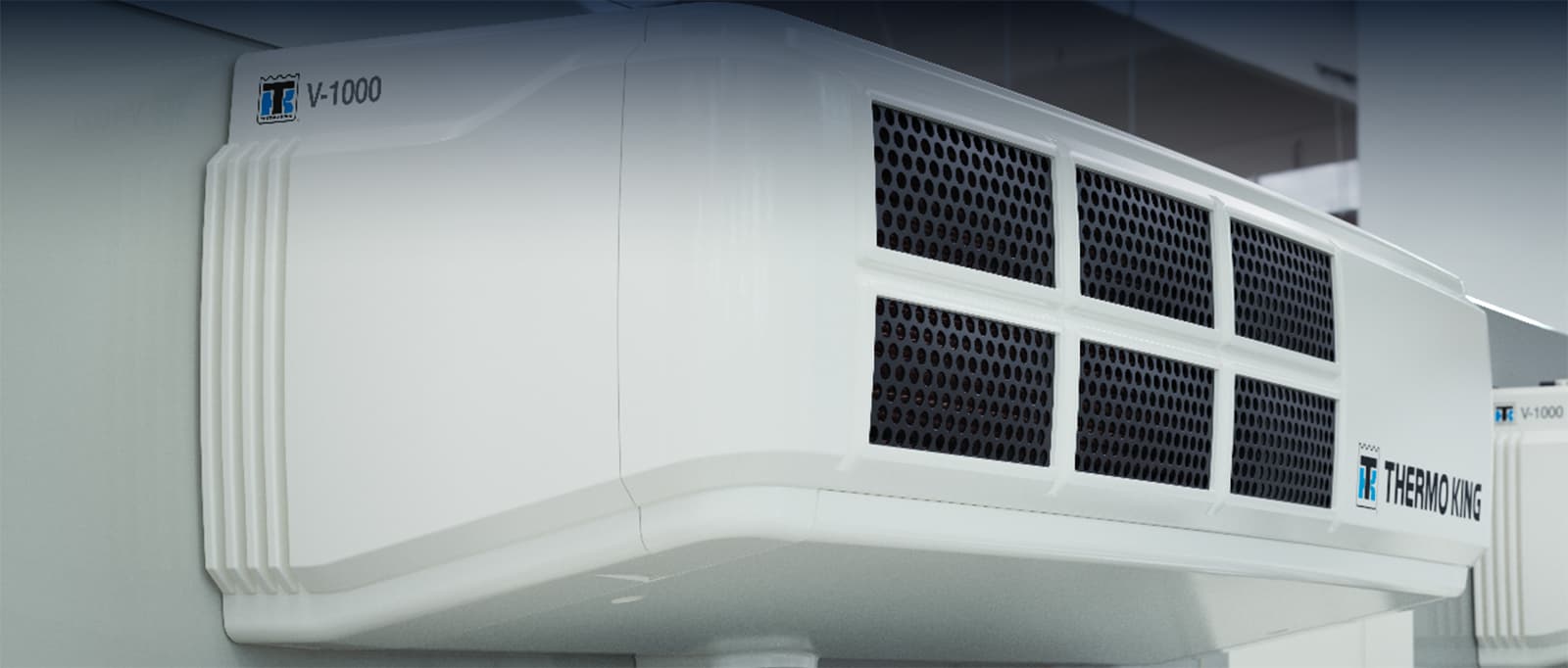

A sustainable alternative to diesel

Powered by the vehicle's engine, the V-Series emits no CO₂, NOx or particulates from the unit itself. Fuel consumption is up to 54 % lower and maintenance costs up to 33 % lower than an equivalent diesel unit. V-Series is compatible with CNG, LNG and biodiesel vehicles and is available in 12 V or 24 V configurations for trucks from 3.5 t to 25 t.
