Trailer Unit

A500 Spectrum

Mastering multi-temp

HCTMulti-temperature

Bespoke multi-temp A-Series controller
Set-point accuracy up to 0.5 °C
Up to 20% fuel savings
Fast temperature recovery after door openings
Electronically governed NRMM compliant 4-speed engine
Quietest high-capacity unit on the market

The A-500 Spectrum offers best-in-class fuel efficiency, cooling capacity and temperature control. Motor-independent airflow into the cargo space ensures the desired temperature even at the rear of longer trailers. A two-year remote monitoring agreement is included as standard, allowing the unit to be controlled and monitored remotely. The A-500 platform is purpose-built for HCT trailers.

Specifications

Host-unit Refrigeration Capacity

Capacity on engine power, 0°C: 20 200 W
Capacity on engine power, −20°C: 10 000 W
Capacity on electrical stand-by, 0°C: 16 200 W
Capacity on electrical stand-by, −20°C: 7 600 W
: 16 000 W

Remote Evaporator Capacity

S3A, 0°C / 30°C: 9 100 W
S6A, 0°C / 30°C: 13 650 W

Airflow

Default Airflow Pull Down: 5 400 m³/h
Default Airflow Set Point: 3 400 m³/h

General

Refrigerant: R-452A
Controller: A-Series Controller

Weight

Total Unit Weight (50 Model): 840 kg

Host-unit Dimensions

Height: 2 270 mm
Width: 2 076 mm
Depth: 440 mm

S3A Evaporator Dimensions

Width: 1 100 mm
Depth: 1 000 mm
Height: 200 mm

Engine

Maintenance Interval: 3 000 h
Number of cylinders: 4
Capacity: 2,1 L

Electrical Stand-by Motor

Voltage / Phase / Frequency: 400/3/50 · 460/3/60
Rating: 9,3 kW

Noise

Road Mode: 67 dB(A)
Electric Standby: 64 dB(A)

The technical data and dimensions shown are indicative and not binding. Verify the final dimensions and specifications with our sales team before ordering. Subject to technical changes, errors and translation errors.

More about the Advancer range

−30 %

Fuel consumption

+40 %

Pulldown speed

−30 %

Maintenance costs

3 000 h

Service interval

Performance with fully variable airflow

Fully variable airflow strikes the ideal balance between load protection and fuel efficiency. Smart energy distribution accelerates pull-down, and on multi-drop routes you can briefly raise airflow for fast temperature recovery after each door opening.

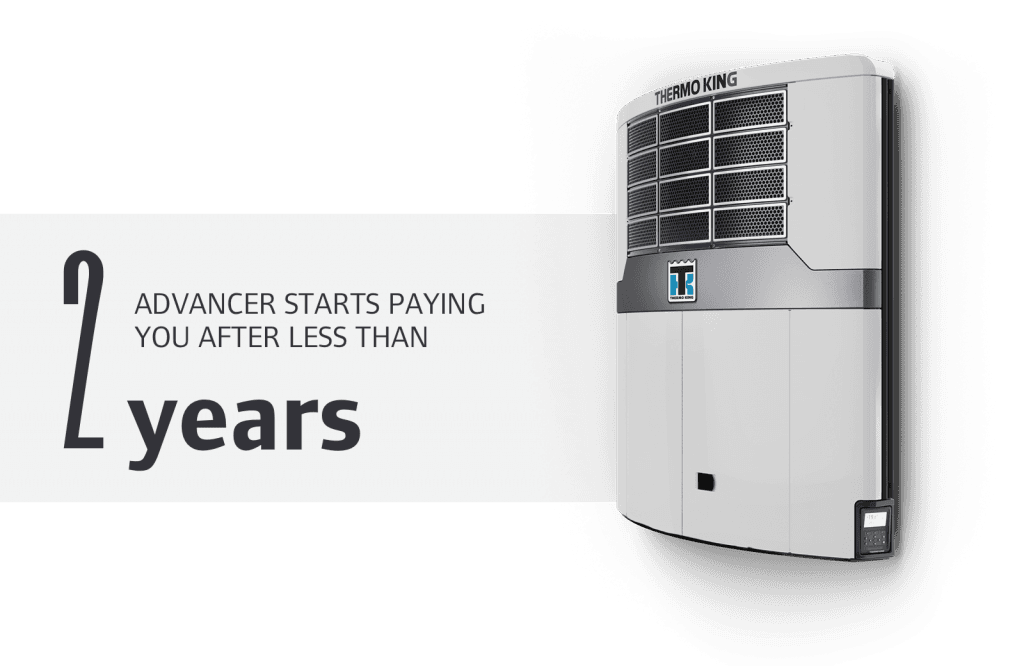

Class-leading cost-efficiency

Advancer is at least 30% more fuel-efficient than the market average and delivers a 30% reduction in maintenance costs. Its separate compressor and fan drive make it 40% more energy efficient than conventional generator-driven units, and the 3,000-hour service interval keeps it productive for longer.

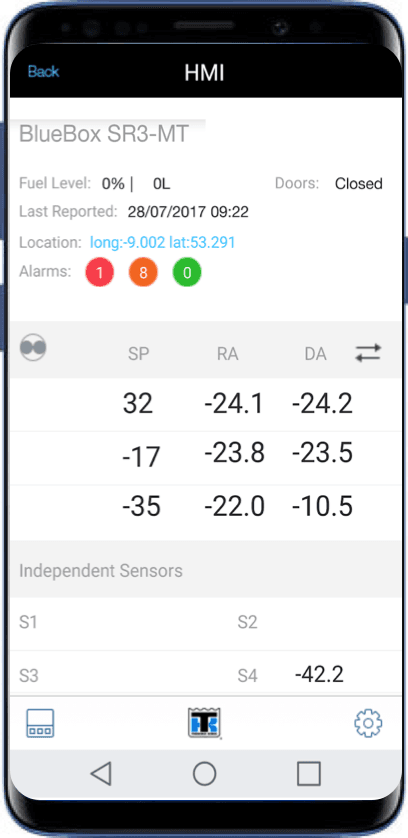

Intelligence you can act on

A 2-year Connected Solutions contract is included, with access to the TracKing platform and the TK Reefer and TK Notify mobile apps. Proactive alarms recommend a 'next best action' based on Thermo King best practice whenever an issue is detected.

Robust, intuitive A-Series controller

A large full-colour display with icon-based navigation reaches any function in at most five button presses. The casing is fully submersible and IP69K-rated, and the controller supports 14 languages plus over a year of data logging compliant with EN 12830.

Hybrid-ready — access to low-emission zones

Advancer Hybrid combines diesel and electric and switches automatically between modes using geofencing — no driver intervention needed. Save up to 5,000 litres of fuel and 13,500 kg of CO₂ per unit per year, while gaining access to NRMM Stage V, PIEK and Low-Emission Zones.
