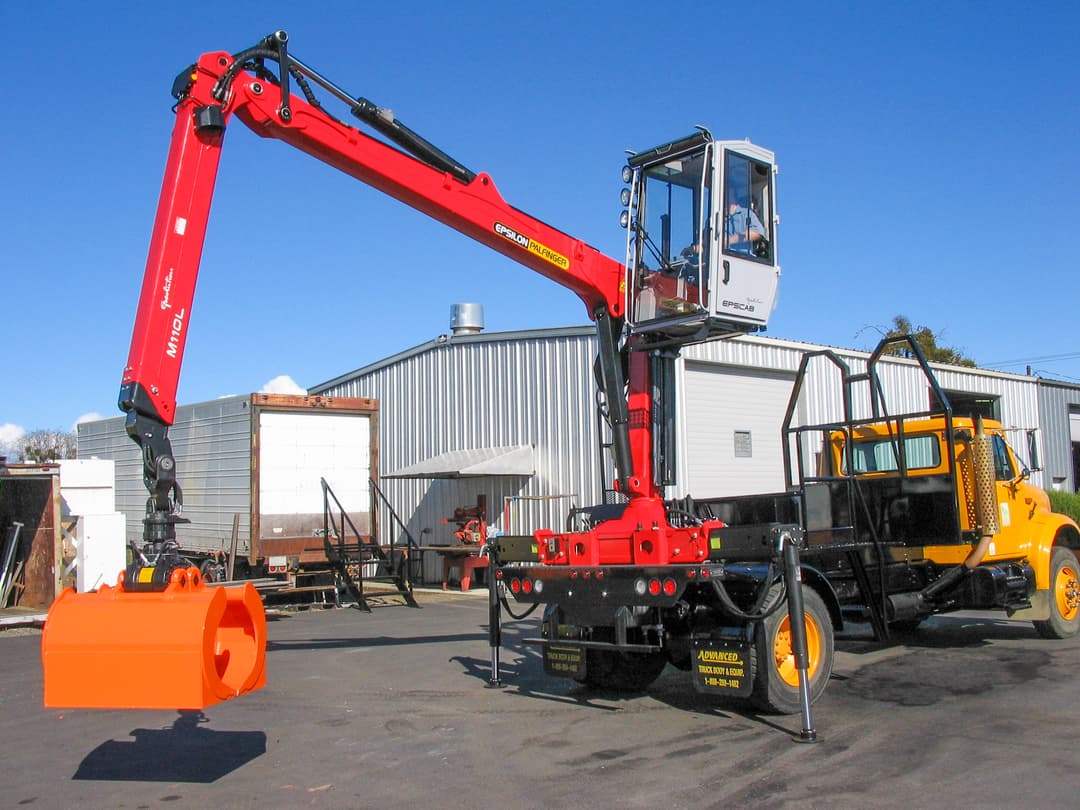

M110L
M-series medium-duty L-type recycling crane — 11 tonne-metres and a light build
111 kNm
Lifting moment (max)
9,7 m
Hydraulic outreach (max)
2 020 kg
Dead weight (standard)
27 kNm
Slewing torque (net)
The M110L is the M100L's stronger recycling variant — 11 tonne-metre capacity, 111 kNm of lifting moment and 235 bar operating pressure. A light 2,020 kg standard weight preserves payload. Five boom lengths (7.5 m, 8.0 m, 8.0 m V, 8.3 m, 9.7 m). HPSC + Epslink + Epscope.
Stronger M-series L-type
The M110L delivers 111 kNm of lifting moment and 11 tonne-metre capacity — stronger than the M100L, retaining the light build.
HPSC stability control
HPSC calculates lifting capacity in real time — safe operation at recycling sites.
Protected hydraulic routing
Epslink and Epscope systems protect the hydraulics in the demanding conditions of recycling yards.
Technical Specifications
The cranes shown in the brochure may be partly equipped with optional equipment and do not always correspond to the standard versions. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation errors.
Control Methods
Manual cabin
EPSCAB Manual (CAM)
Hydraulically lifted cabin with Parker F130CF valve.
Electrohydraulic cabin
EPSCAB Electric (CAE)
Parker L90LS / IQAN valves.
Wireless remote control
Remote control (RCE)
Danfoss proportional valves and feedback-enabled handset.
Side-mounted control station
Side seat HKR/HKL
Two joysticks and two pedals — a compact choice.
Standard Features & Technology
Stronger than M100L
11 tonne-metre capacity and 111 kNm of lifting moment — a stronger L-type recycling choice.
HPSC – High-Performance Stability Control
Real-time lifting capacity calculation based on actual stabiliser position.
Epslink + Epscope
Patented systems — internal hose routing protects the hydraulics in recycling environments.
Light 2 020 kg standard weight
L-type compact design preserves payload for the actual work.
Five boom lengths
Available with 7.5/8.0/8.0V/8.3/9.7 m booms — including a Vario version (V).
Six control modes
EPSCAB CAM/CAE/CAE-XL, side seats HKR/HKL, remote control (RCE) and standing platform.
Optional Features
Remote control (RCE)
Wireless remote control with Danfoss proportional valves.
EPSCAB Manual / Electric / XL Electric
Hydraulically or electrically lifted cabin in different size options.
Side seats HKR/HKL
Two joysticks and two pedals — compact side-mounted control station.
