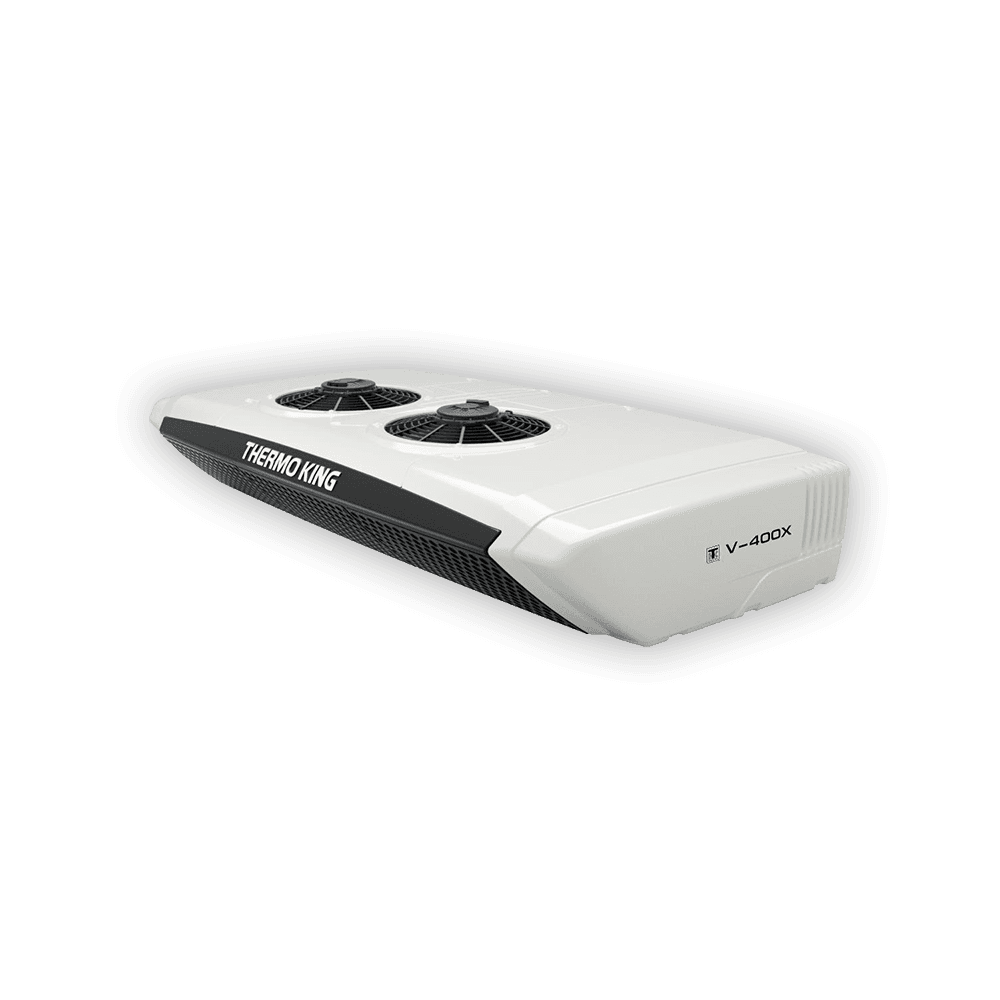

Van Unit

V-400X

Precise ± 1 °C temperature control — the compact VX-Series model

Most compact VX-Series unit — designed for last-mile delivery
Aerodynamic, lightweight construction — payload maximised
DSR controller, ± 1 °C accuracy
Available with R-134a or R-452A refrigerant
Suitable for 10–27 m³ van and medium LCV cargo spaces
Multi-temperature Spectrum variant with ES-200/ES-300 evaporators

The V-400X is a direct-drive unit powered by the vehicle's own engine. A dedicated Thermo King QP16 refrigeration compressor is belt-mounted to the engine. The V-400X is available with front-wall, roof or flush mounting and in 1- and 2-temperature configurations.

Specifications

Refrigeration Capacity

Capacity on engine power, 0°C (R-134a): 3 212 W
Capacity on engine power, 0°C (R-452A): 4 082 W
Capacity on electric stand-by, 0°C (R-134a): 2 366 W
Capacity on electric stand-by, 0°C (R-452A): 3 026 W

Airflow

Airflow: 1 990 m³/h
Independent from unit engine speed: ✓

Compressor

Model: QP16
Type: Swash plate
Max recommended speed: 3 000 RPM

Box size and refrigerant

Box volume: 10–27 m³
Refrigerant (base): R-134a
Refrigerant (MAX): R-452A
Evaporator configurations: ES100 / ES200 / ES300

Electric stand-by motor

Voltage / Phase / Frequency: 230V/1PH/50–60Hz · 230V/3PH/50–60Hz · 400V/3PH/50–60Hz

Controller

Controller: DSR (Direct Smart Reefer)
Accuracy: ± 1 °C

The technical data and dimensions shown are indicative and not binding. Verify the final dimensions and specifications with our sales team before ordering. Subject to technical changes, errors and translation errors.

More about the the VX-Series

± 1 °C

Temperature accuracy

50 %

Lighter than predecessor

R-452A

Low-GWP refrigerant

1 & 2

Temperature zones (Spectrum)

VX-Series — powerful, light and sustainable

The VX-Series is Thermo King's new direct-drive platform — up to 50 % lighter, increasing maximum payload, with aerodynamic styling that reduces fuel use. Precise ± 1 °C temperature control and the DSR controller put the driver in full command of single- or multi-temperature configurations from vans to medium-heavy trucks.

Low-GWP refrigerant — R-452A available

VX-Series units are available with R-134a or R-452A refrigerant. R-452A significantly lowers global-warming impact versus R-404A without sacrificing performance or reliability. Meet emission reductions and fleet regulations with a single unit generation.

DSR controller — full driver control

Direct Smart Reefer (DSR) is an intuitive microprocessor controller that gives drivers complete control over refrigeration settings — set-point lock, door switches, automatic diesel/electric switching and detailed alarm codes. Wintrac-compatible analysis software simplifies service and diagnostics.
