Truck Unit

UT-R 1400

The most powerful undermount unit on the market

Undermount

The most powerful undermount refrigeration system on the market
Quick temperature recovery after door openings — high cooling capacity
10 % smaller and 40 kg lighter than the legacy unit — more space and payload
GreenTech engine, 100 % HVO-compatible (Stage V)
3 dB(A) quieter than the legacy unit; optional Whisper kit (−2 dB(A))
Extended maintenance interval (EMI 2000) and 2-year warranty as standard

The UT-R 1400 is a Thermo King UT-Series undermount unit with its own diesel engine, providing single-temperature refrigeration for large cargo bodies and long-haul distribution. It is the most powerful undermount system in its class and recovers the set-point quickly after door openings. A redesigned enclosure that is 200 mm shorter reduces volume by 10 % and weight by 40 kg compared with the legacy unit, freeing up space on the chassis and inside the cargo box. The GreenTech engine is 100 % HVO-compatible and meets the strictest EU emission standards (Stage V). Also available with the Frigoblock hybrid kit, which cuts fuel consumption by up to 50 %.

Specifications

Refrigeration Capacity

Capacity on engine power, 0°C: 12 200 W
Capacity on engine power, −20°C: 6 600 W
Capacity on electrical stand-by, 0°C: 9 900 W
Capacity on electrical stand-by, −20°C: 4 900 W

Heating Capacity

Capacity on engine power (−18°C / 18°C): 4 400 W
Capacity on electrical stand-by: 3 200 W

Airflow

S-3 + S-3 evaporators: 4 450 m³/h
E-type evaporator version: 3 350 m³/h
Independent from unit engine speed: ✓

Weight

Host + battery + evaporators (S-3 + S-3): 583 kg
E-type evaporator version: 542 kg

Noise (sound pressure level @ 7 m, DIN 8958)

High speed diesel (HSD): 73,4 dB(A)
Low speed diesel (LSD): 66,7 dB(A)
Electric stand-by: 63,4 dB(A)

Refrigerant

Refrigerant: R-452A
Charge (S-3 + S-3 / E-type): 4,85 kg / 4,6 kg

Engine & maintenance

Maintenance interval (EMI 2000): 2 000 h
Biofuel compatible (HVO / B7): ✓
Emission stage: Stage V (GreenTech)

The technical data and dimensions shown are indicative and not binding. Verify the final dimensions and specifications with our sales team before ordering. Subject to technical changes, errors and translation errors.

More about the Advancer range

−40 kg

Lighter than the legacy unit

−10 %

Smaller volume — more chassis space

−3 dB(A)

Lower noise vs. legacy unit

−90 %

CO₂ reduction with HVO fuel

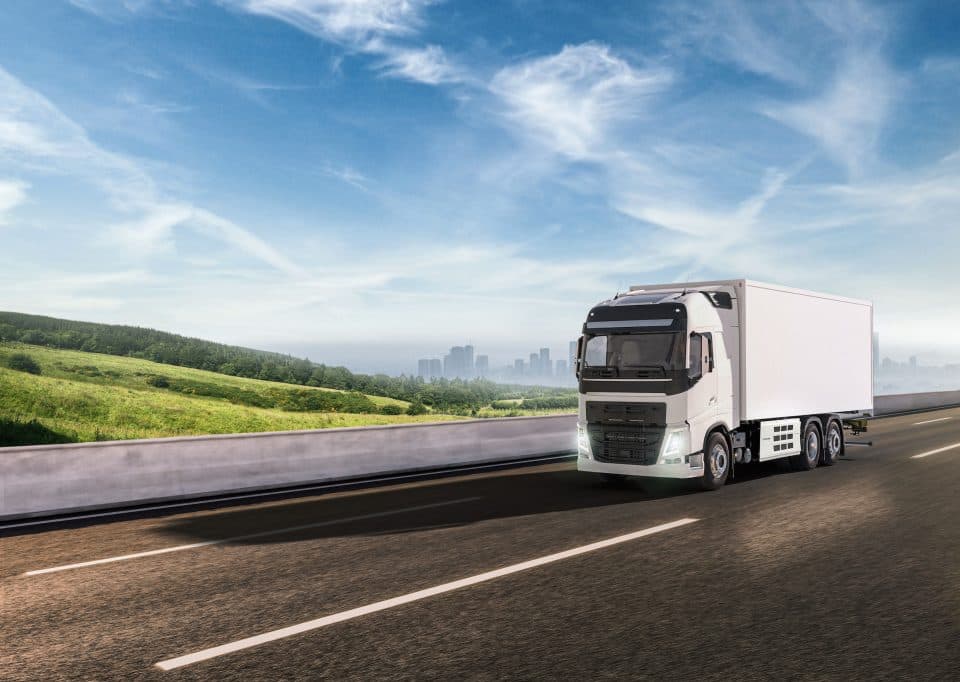

The highest cooling capacity on the market

The UT-R 1400 reaches the set-point quickly from ambient and recovers temperature rapidly after door openings. Smooth, precise temperature control creates ideal conditions for sensitive fresh products and extends shelf life — thanks to the highest cooling capacity in its class.

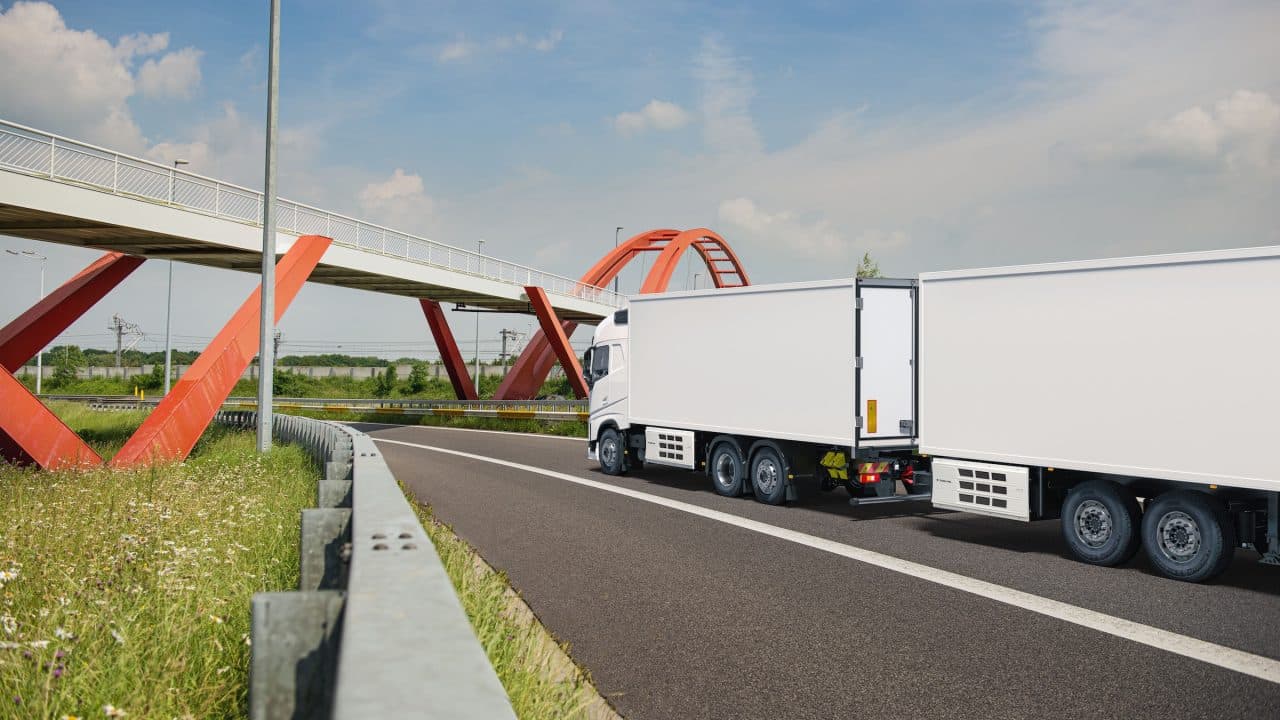

GreenTech engine and HVO compatibility

The GreenTech engine is one of the cleanest in the industry and meets the strictest EU standards (Stage V). Full 100 % HVO compatibility cuts CO₂ emissions by up to 90 % with no change to the maintenance schedule, and Cycle-Sentry stops the engine when refrigeration is not required — saving fuel and CO₂ by up to 80 %.

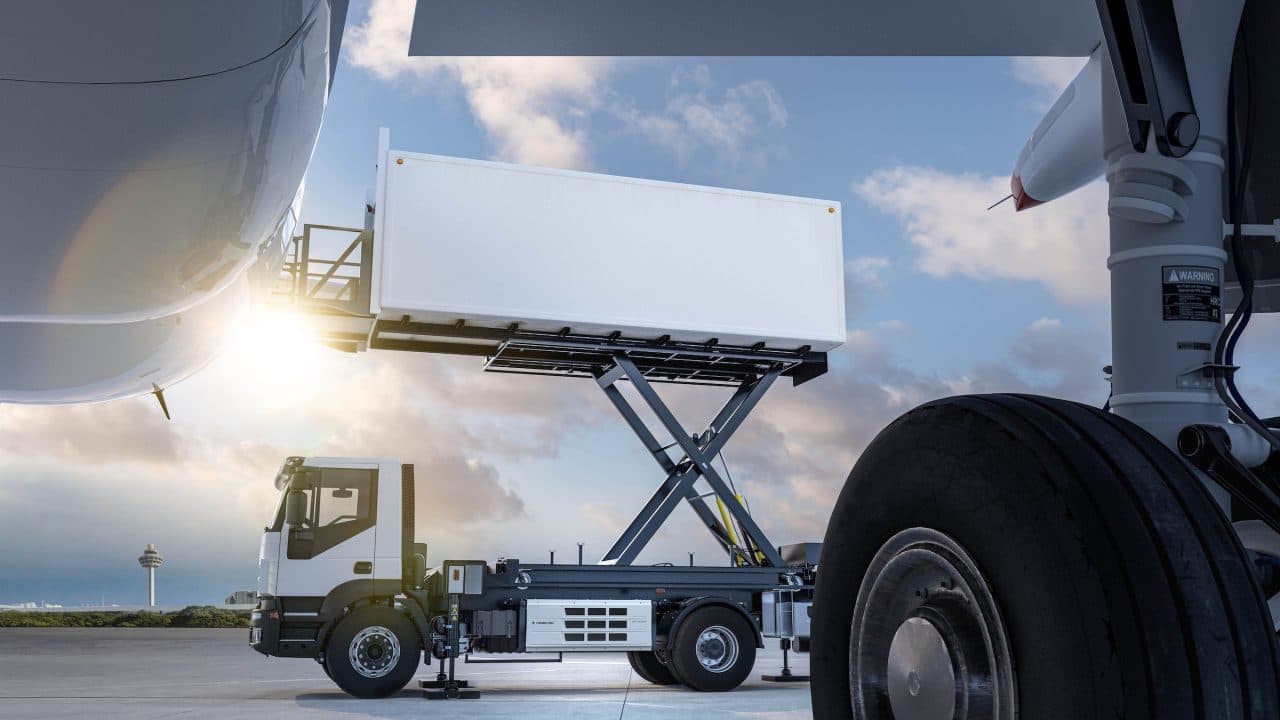

Frigoblock hybrid-ready

With the optional Frigoblock hybrid kit the unit can run on electricity generated by the truck engine while driving. This reduces fuel consumption by up to 50 % and lowers emissions — diesel drive remains available as a back-up when the engine is switched off.
