MBB C 2000 SKN
Tow-hitch compatible 2,000 kg tail lift
2 000 kg
Lifting capacity
2 450 – 2 600 mm
Platform width
1 700 – 2 000 mm
Platform length
n. 0 – 600 mm
Tow coupling position
A tow-hitch compatible tail lift for vehicles equipped with a tow coupling. Coupling position approx. 0–600 mm; the long-arm distribution variant is also suitable depending on the coupling location. Built on the C 2000 SK platform with a powerful four-cylinder lifting mechanism and a hydraulically driven, tiltable single-part underrun protection device — safe and efficient operation both solo and with a trailer.
Tow-hitch compatible — fits vehicles with a tow coupling
Coupling position approx. 0–600 mm. The long-arm distribution variant is also compatible depending on the coupling location — a flexible solution for both solo driving and trailer operation.
Hydraulically tiltable underrun protection
The single-part underrun protection folds up for trailer use and swivels down for solo driving — full safety in both modes.
Strong 2,000 kg capacity
The four-cylinder mechanism and AluLite 40SH platform deliver stable and reliable lifting performance for heavy distribution work.
Technical Specifications
The cranes shown in the brochure may be partly equipped with optional equipment and do not always correspond to the standard versions. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation errors.

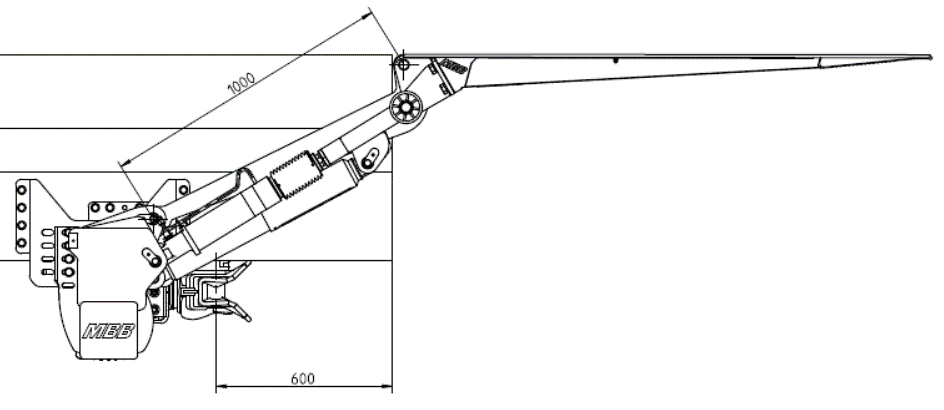

Technical Drawing
Standard Features & Technology
Tow coupling-compatible construction
Designed for vehicles equipped with a tow coupling. Coupling position approx. 0–600 mm — a solution where pairing the tail lift with a tow hitch is not a compromise.
Hydraulically tilting underrun guard
Hydraulically driven, tiltable single-part underrun protection device offers maximum flexibility — folds up for trailer use and swivels down for solo driving safety.
Robust four-cylinder mechanism
Two lifting and two tilting cylinders, KTL-coated steel components and Q8 Heller T15 hydraulic oil — a durable construction for demanding work.
Light AluLite 40SH platform
High stability with low weight. Slip-resistant cross-milled surface (R10), warning lights and flags as standard.
MBB CONTROL control system
Modern programmable circuit board with diagnostic capability. The board is protected by double encapsulation to prevent oxidation.
Optional Features
Adjustable 3-part underrun protection
Modular design allows precise adaptation to the vehicle with easily replaceable sections.
Stabilisers
Hydraulic or mechanical stabilizers increase stability during loading and minimize vehicle movement.
AluStar / FerroStar X tail lift platforms
AluStar platform with reinforced tunnel-structure for advertising panels or highly resilient FerroStar X steel platform for demanding conditions.
MBB SafeVis
LED edge strips and illuminated roll-stops enhance visibility in low-light conditions — available steady or flashing.
MBB SafeClose
Intelligent obstacle detection that stops movement automatically if resistance is detected during closing.
Flexible operating controls
Slim Control Panel (Basic/Plus/Premium), foot switches, control box, Bluetooth Remote Control, 3+1 buttons and wanderlead controls.
Cab control
In-cab control unit allows operation from the driver's cabin, reducing walking routes and improving efficiency.
Hydraulic oils
AeroShell Fluid oils factory-fitted for −40°/+40° conditions.
