MBB C 1500 S
One of the strongest tail lifts in its class with powerful lifting performance and outstanding durability
1 500 kg
Lifting capacity
2 450 – 2 600 mm
Platform width
1 700 – 2 000 mm
Platform length
564 kg
Dead weight (from)
Combines a robust four-cylinder lifting mechanism with a wide range of lifting arm lengths, making it ideal for demanding distribution and general cargo applications. The durable mechanism with two lifting and two tilting cylinders, three-part underrun protection device and KTL-coated steel components ensures optimal corrosion protection and reliable operation.

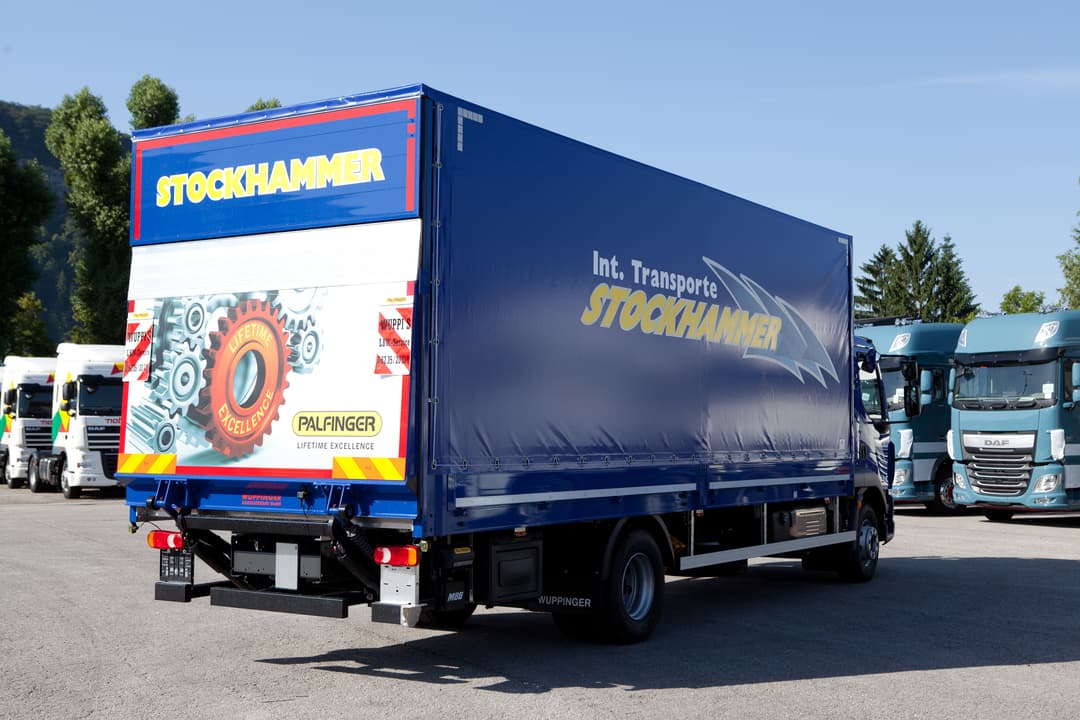

Powerful four-cylinder mechanism
Two lifting and two tilting cylinders combined with three-part underrun protection deliver stable lifting performance for demanding work.

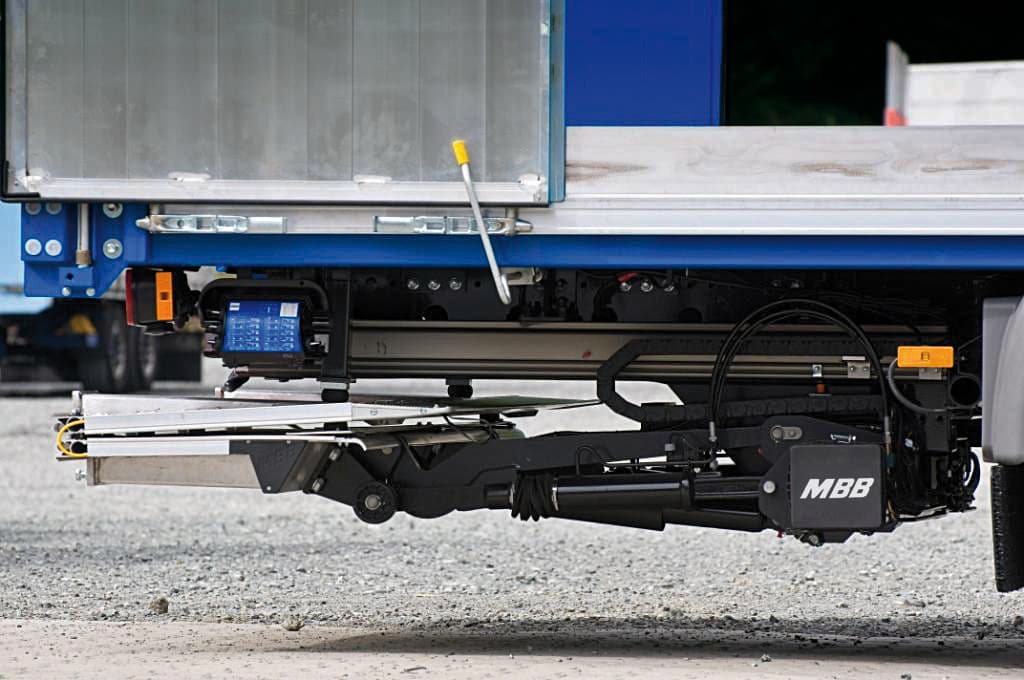

Wide range of lifting arm lengths
Lifting arm length from 700 to 1,100 mm — fits a wide range of vehicles and applications, with loading height up to 1,793 mm.
SafeVis & SafeClose safety package
Smart safety options protect both operator and load — LED visibility in low light and automatic stop when an obstacle is detected.
Technical Specifications
The cranes shown in the brochure may be partly equipped with optional equipment and do not always correspond to the standard versions. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation errors.
Technical Drawing
Standard Features & Technology
Robust four-cylinder mechanism
Durable construction with two lifting and two tilting cylinders, three-part underrun protection and Q8 Heller T15 hydraulic oil. KTL-coated steel components for corrosion protection.
Light AluLite 40S aluminium tail lift platform
Combines high stability with low weight. Cross-milled slip-resistant surface (R10), warning lights and flags as standard.
Comfortable operation as standard
Slim Control Panel (Basic) with a flat, robust design and ergonomic button layout for clear, safe operation.
MBB CONTROL control system
Modern programmable circuit board with diagnostic capability. The board is protected by double encapsulation to prevent oxidation.
High safety
MBB SafeVis improves visibility in low-light conditions with steady or flashing LED light, and MBB SafeClose stops closing automatically if an obstacle is detected.
Premium control units
Slim Control Panel Premium is robust, waterproof and shock-resistant — double 7-segment LED display for status and voltage information.
Optional Features
Adjustable 3-part underrun protection
Modular design allows precise adaptation to the vehicle with easily replaceable sections, reducing maintenance effort.
Stabilisers
Hydraulic or mechanical stabilizers increase stability during loading and minimize vehicle movement.
AluStar / FerroStar X tail lift platforms
AluStar platform with reinforced tunnel-structure design or highly resilient FerroStar X steel platform for demanding conditions.
AluPlan folding platform
Horizontally folding platform for special applications. Optional heavy-duty locking system makes the platform drive-over capable up to 2,000 kg.
MBB SafeVis
LED edge strips and illuminated roll-stops enhance visibility in low-light conditions — available steady or flashing.
MBB SafeClose
Intelligent obstacle detection that stops movement automatically if resistance is detected during closing.
Flexible operating controls
Slim Control Panel (Basic/Plus/Premium), foot switches, control box, Bluetooth Remote Control, 3+1 buttons and wanderlead controls.
Cab control
In-cab control unit allows operation from the driver's cabin, reducing walking routes and improving efficiency.
Hydraulic oils
AeroShell Fluid oils factory-fitted for −40°/+40° conditions.
