Q130LD
Q-series LD-Type crane — 13 tonne-metre capacity and 10.4 m reach
119 kNm
Lifting moment (max)
10,4 m
Hydraulic outreach (max)
2 450 kg
Dead weight (8.0 m)
2 630 kg
Dead weight (9.7 m)
The Q130LD is the Q-series LD-type (Low Duty) timber crane with a 13 tonne-metre lifting capacity and 10.4 m maximum outreach. Three boom lengths (8.0 m, 9.7 m and 10.4 m) and a low 210 bar operating pressure. A more economical choice for demanding use on the L-type base — same Epslink + Epscope + KTL technology as other Q-series models.

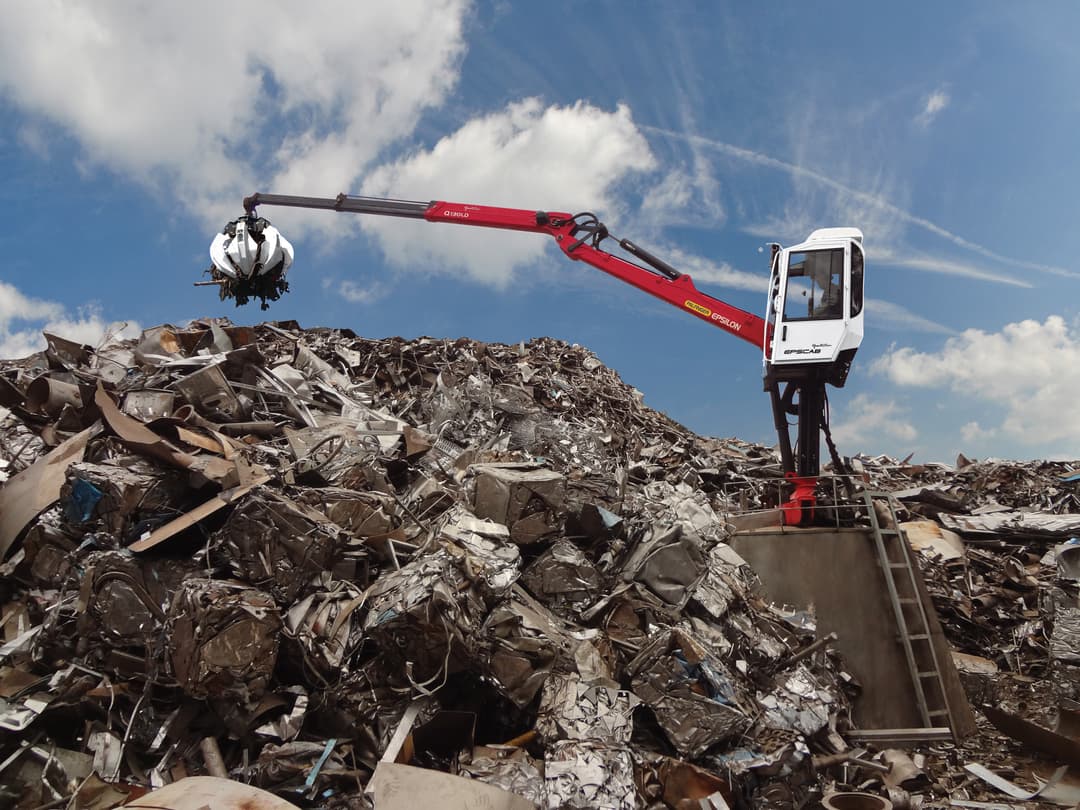

Economical Q-series LD choice
The Q130LD delivers 13 tonne-metre capacity and 10.4 m of reach with a low 210 bar operating pressure — an economical Q-series choice.
Long 10.4 m reach
With a 10.4 m boom the maximum outreach is 10.4 m — long reach for demanding forestry and recycling work.
Protected hydraulic routing
Epslink and Epscope systems protect the hydraulics in forestry conditions — the same Q-series reliability.
Technical Specifications
The cranes shown in the brochure may be partly equipped with optional equipment and do not always correspond to the standard versions. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation errors.
Control Methods
Manual cabin
EPSCAB Manual (CAM)
Hydraulically lifted cabin with Parker F130CF valve — compact, direct control.
Electrohydraulic cabin
EPSCAB Electric (CAE)
Parker L90LS / IQAN valves — precise, smooth electrohydraulic control.
XL electric cabin
EPSCAB XL Electric (CAE-XL)
200 mm longer than standard, panoramic door option and improved workspace for the operator.
Side-mounted control station
Side seat HKR/HKL
Two joysticks and two pedals — a compact choice for tight spaces (right HKR or left HKL).
Standard Features & Technology
LD = Low Duty economical choice
Lower operating pressure and simpler configuration — an economical Q-series choice.
Epslink
EPSILON's patented link-rotator combination — robust four-eye-cast link with internal hose routing.
Epscope
EPSILON's patented extension boom system — extension cylinder and hose equipment mounted internally for protection against mechanical damage.
KTL coating
Cathodic dip coating protects all structural components from corrosion — longer service life in demanding conditions.
Three boom lengths
Available with 8.0/9.7/10.4 m booms — a flexible choice for the application.
Finite Element optimisation
Structures are optimised using Finite Element Method (FEM) analysis — durability and lightness combined.
Optional Features
EPSCAB Manual (CAM)
Hydraulically lifted cabin with Parker F130CF valve — compact dimensions and direct control.
EPSCAB Electric (CAE)
Electrohydraulic cabin with Parker L90LS / IQAN valves — precise, smooth control.
EPSCAB XL Electric (CAE-XL)
XL electric cabin — 200 mm longer than standard, panoramic door option and improved workspace.
Side seats HKR/HKL
Two joysticks and two pedals — compact side-mounted control station (right HKR / left HKL).
Remote control (RCE)
Wireless remote control — safe, efficient operation from a distance.
