PK 92002-SH

Heavy loader crane for demanding lifting operations

85.5 mt

Lifting moment (max)

30 000 kg

Lifting capacity (max)

22.5 m

Hydraulic outreach (max)

25.0 m

Manual outreach (max)

The PK 92002-SH is designed for heavy lifting, combining vast lifting capacity with advanced stability control. It handles heavy tasks as easily as delicate installations — maximum power, endurance, and control.

Technical Specifications

Lifting moment (max)85.5 mt

Lifting capacity (max)30 000 kg

Hydraulic outreach (max)22.5 m

Manual outreach (max)25.0 m

Outreach with extension booms (max)34.6 m

Slewing angleUnlimited (continuous)

Slewing torque (2-speed)7.7 mt

Outrigger width8.6 m

Folded width2.55 m

Crane height2 470 mm

Operating pressure (max)365 bar

Pump capacity110–130 l/min

Dead weight (base)6 718 kg

The cranes shown in the brochure may be partly equipped with optional equipment and do not always correspond to the standard versions. Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation errors.

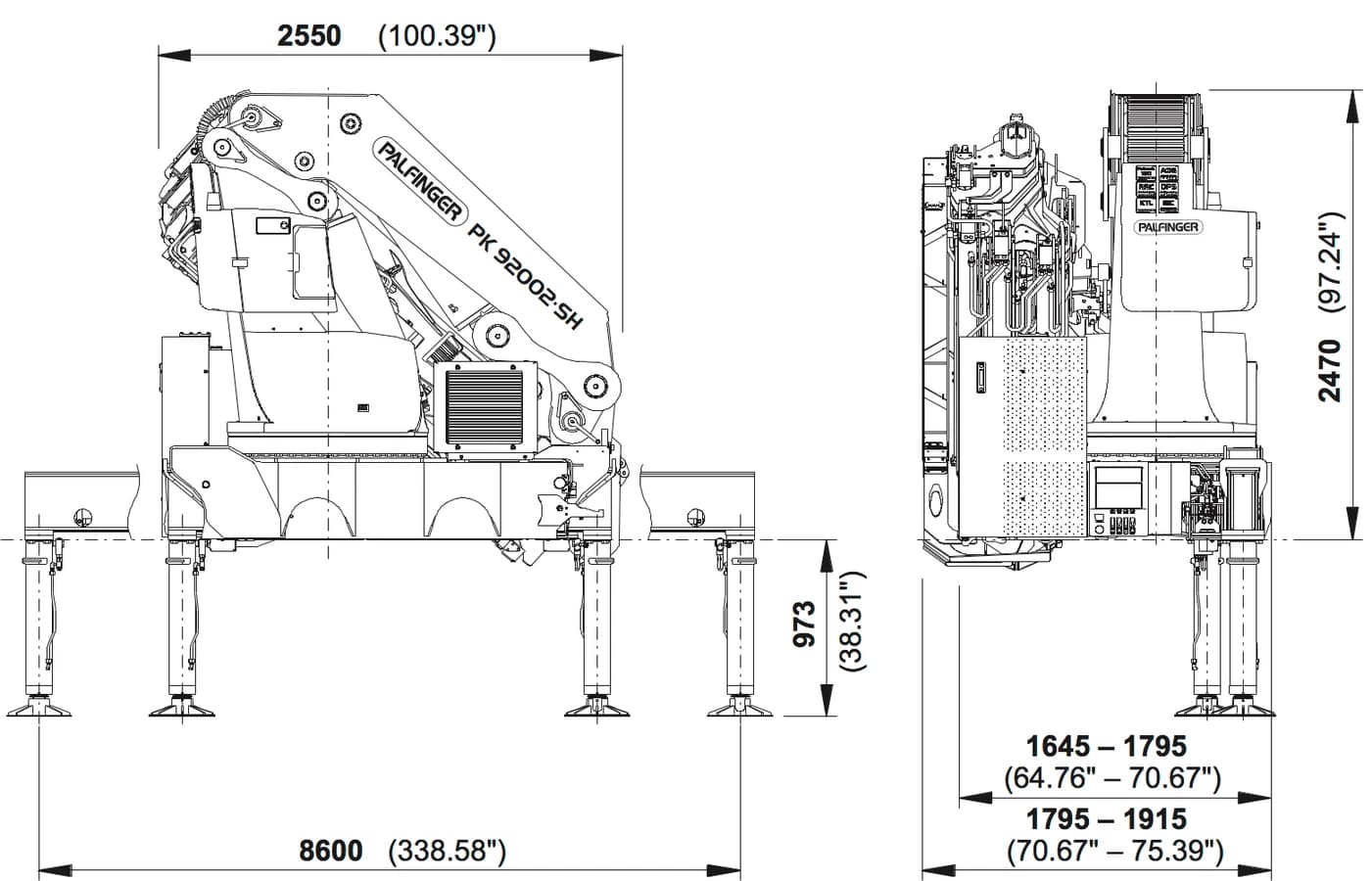

Technical Drawing

View

Arm Configurations

Config	Weight	Lifting moment	Outreach
A	6 780 kg	84.8 mt	7.4 m
B	7 140 kg	83.8 mt	9.3 m
C	7 510 kg	80.6 mt	11.3 m
D	7 850 kg	79.7 mt	13.5 m
E	8 180 kg	78.8 mt	15.7 m
F	8 480 kg	78.0 mt	18.0 m
G	8 740 kg	77.2 mt	20.2 m
H	8 920 kg	76.8 mt	22.5 m

Standard Features & Technology

HPSC

High Performance Stability Control — continuously calculates crane stability based on real stabilizer position and automatically adjusts the permitted working range.
